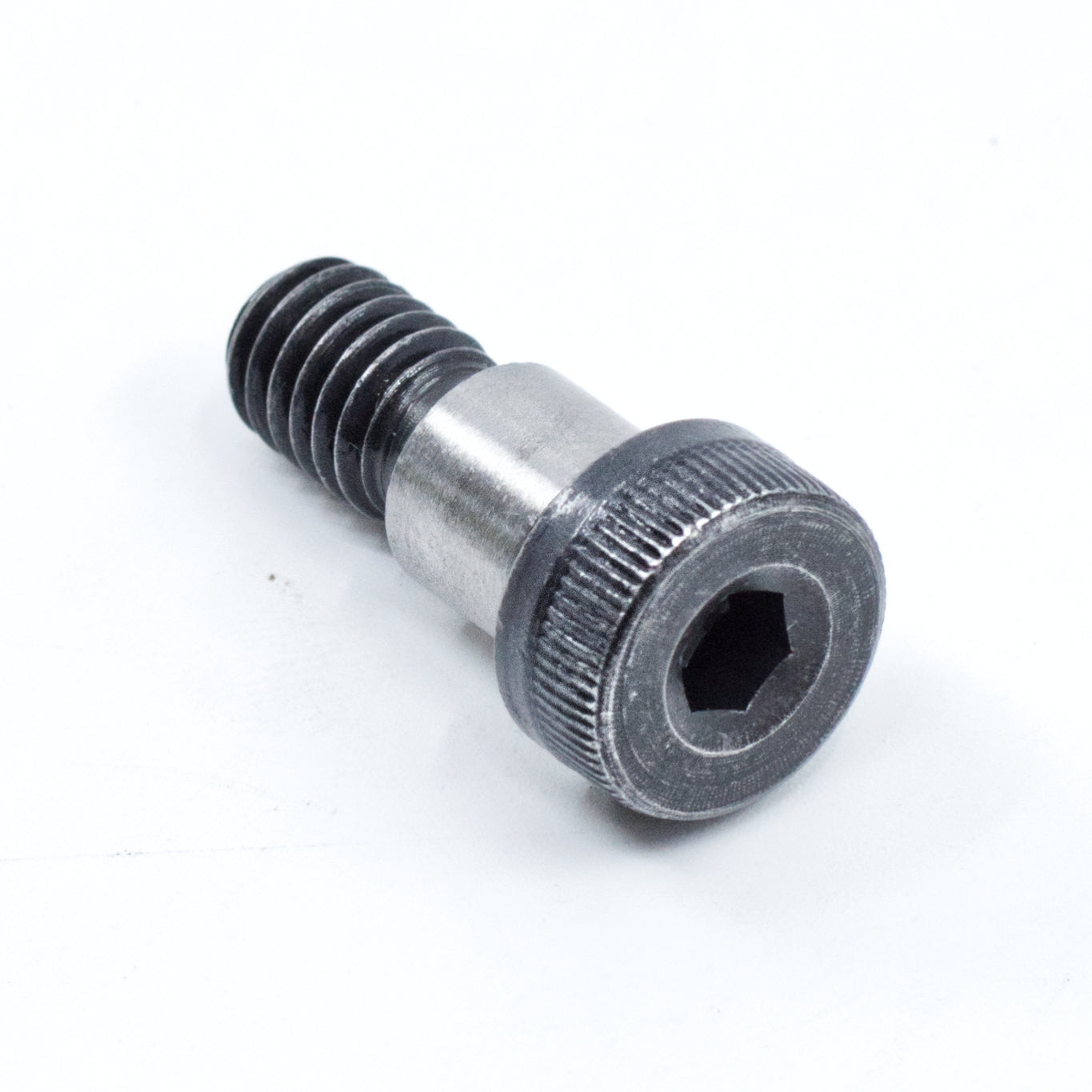

3/8" x 5/16" x 1-1/8" Plain Socket Head Shoulder Screws SHSB-048 (4 pcs.)

Type: Shoulder Bolts
Part Number: MF71601
Original price $11.04 - Original price $11.04
Original price
$11.04
$11.04 - $11.04
Current price $11.04

Diameter: 3/8"
Length: 1-1/8"
Material: Steel
Finish: Plain
Head Style: Socket (3/16" Socket)
Thread Size: 18 (Coarse)
Thread Length: 1/2'
Hardness: Alloy Steel
Style: Socket Head
Type: Shoulder Bolt

Box of 4.

A shoulder screw differs from machine screws in that the shank is ground to a precise diameter, known as the shoulder, and the threaded portion is smaller in diameter than the shoulder. Shoulder bolt specifications call out the shoulder diameter, shoulder length, and threaded diameter; the threaded length is fixed, based on the threaded diameter, and usually quite short. It is usually used for revolving joints in mechanisms and linkages; when used as a guide for the stripper plate in a die set its called a stripper bolt.
