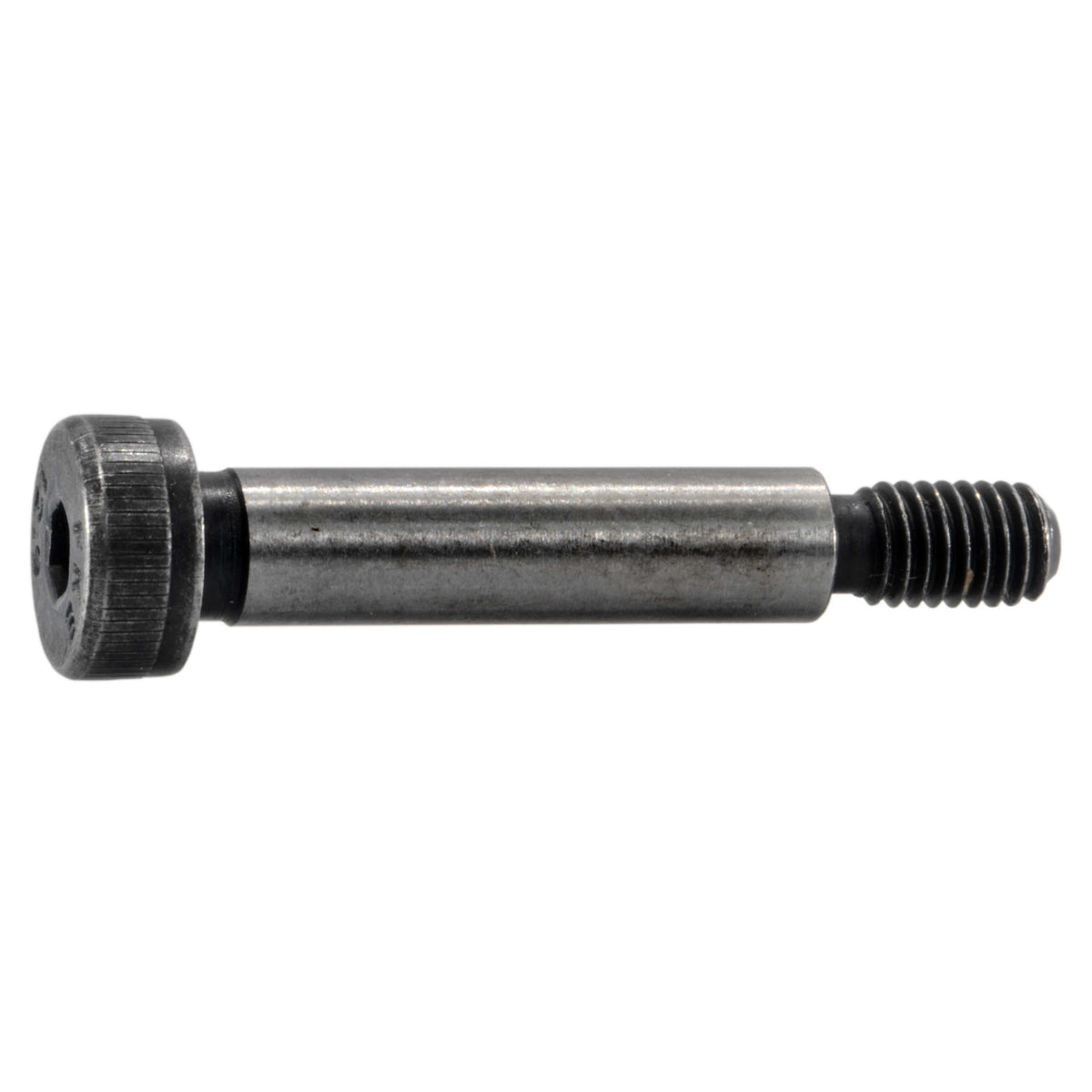

5mm-0.8 x 6mm x 39mm x 25mm Hex Socket Shoulder Screws (5 pcs.)

Diameter: 5mm
Shoulder Length: 25mm
Overall Length: 39mm
Material: Steel
Finish: Plain
Head Style: Socket (3mm Hex)
Thread Size: 0.8mm (Coarse)
Thread Length: 9.5mm
Hardness: Class 12.9
Type: Shoulder Bolt
Specifications: ISO 7379

Box of 5.

A shoulder screw differs from machine screws in that the shank is ground to a precise diameter, known as the shoulder, and the threaded portion is smaller in diameter than the shoulder. Shoulder bolt specifications call out the shoulder diameter, shoulder length, and threaded diameter; the threaded length is fixed, based on the threaded diameter, and usually quite short. It is usually used for revolving joints in mechanisms and linkages; when used as a guide for the stripper plate in a die set its called a stripper bolt.
